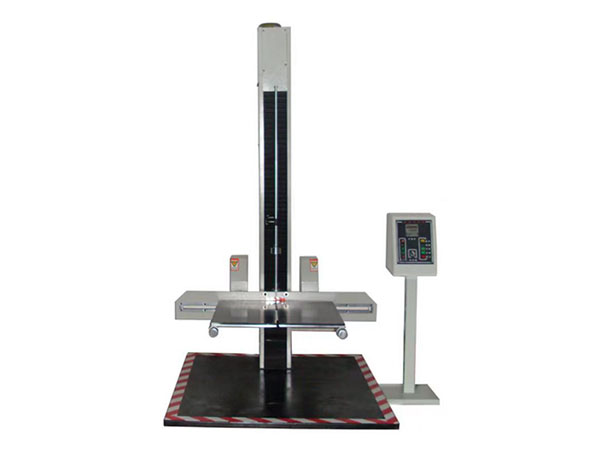

Carton drop testing machine is used to test the degree of damage caused by free fall impact after packaging of various products, including the diamond, Angle and surface of the packaging container can be tested, as well as to evaluate the impact strength of electronic components falling when handling, mainly used to assess the product packaging in the transportation and loading process to withstand the drop ability, so as to improve and perfect the packaging design.

1. Machine specifications :1200*1100*2050(excluding control box)

2. Control mode: push-button control

3. Maximum specimen size: 800*800*1000mm

4. Max test weight :80Kg

5. Drop height :400-1500mm, can be freely controlled, such as 500mm, 500mm automatic stop

6. Longitudinal movement of two wings: Use motor to drive the screw, single point control motor movement.

7. Lateral movement of both wings: manual adjustment.

8. Drop error: ±5mm;

9. Drop plane error :< 1~

10. Height display: high precision encoder induction

11. Floor type electric control box: easy to operate

12. Control box specification :400*430*1150

13. Power Supply: 220V
