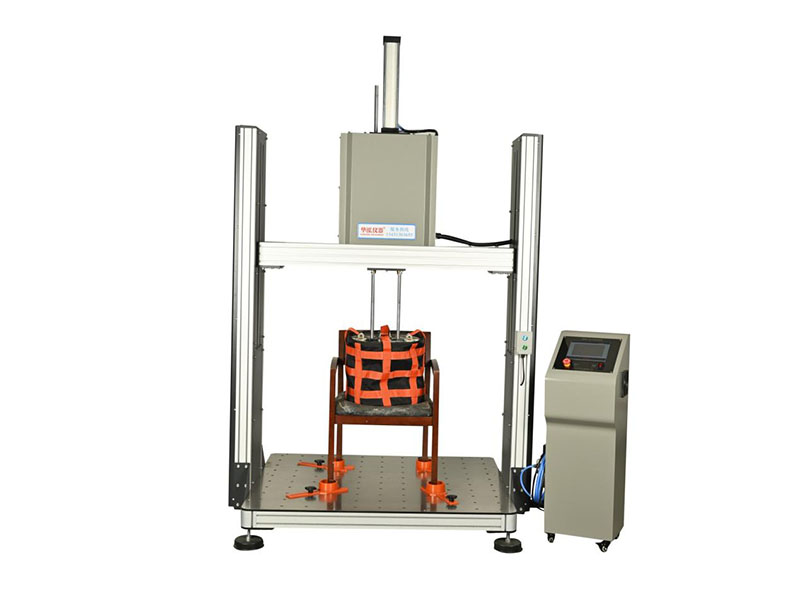

Furniture impact testing machine (pneumatic)

Product Introduction

Furniture impact comprehensive testing machine is used for drop impact test or lifting test equipment.

Main technical parameters
Size 2830*2510*3700mm(body) Weight 1080kg
Power supply 220VAC,5A Gas source ≥0.5Mpa, flow ≥400L/min
Effective size Length 1840mm, width 1460nmm
(workbench, area covered by the center of the impact assembly) 		Effective height 2438mm (impact assembly)
Impact stroke ≤350mm (customizable) Maximum load 50kg (impact assembly, customizable)
Design Features The test platform is covered with a 2.4 mm stainless steel plate and arranged with a matrix of M10 threaded holes with a spacing of 150 mm to hold the sample;
Easy to operate. The impact component can be moved in the X and Y directions, and the height can be electrically adjusted in the Z axis, which can be locked in any position.
Standard Accessories GB Seat impactor *1
Non-standard parts Diameter 16 inch impact test sand bag *1, American standard seat test loading sponge *2, European standard seat impact hammer *1, seat drop test lifting fixture *1
Test project Impact test, drop test
Test standard GB/T 10357.3-2013, EN 1730:2012, EN 1728:2012
Product Usage Applicable to the impact test of international and European standards related to furniture, including: seats, tables, beds and other furniture products testing requirements.
